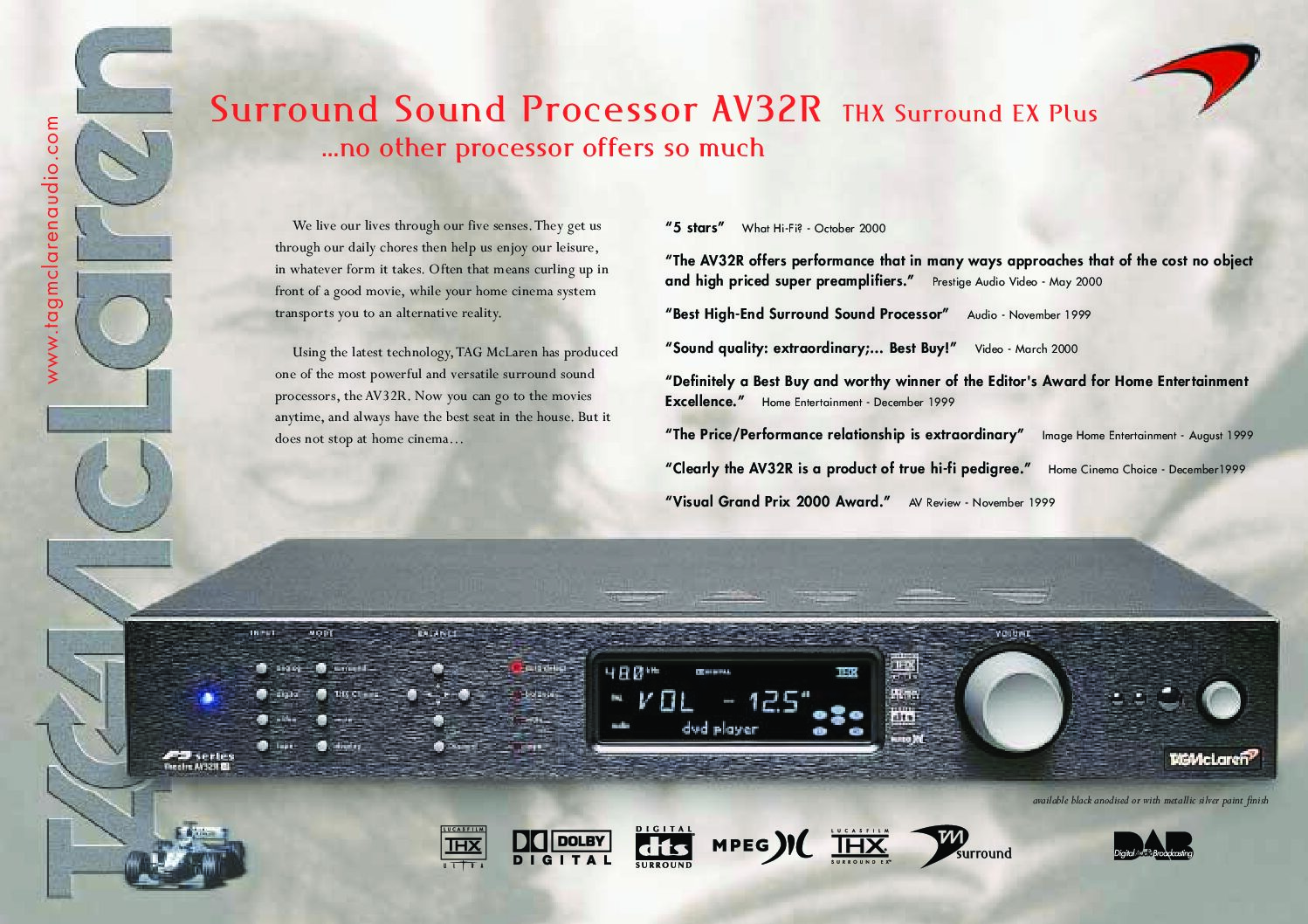

TAG McLaren AV32 R Préampli AV

Préamplificateur Home cinéma et Stéreo
Année 2004

• Decodage
• THX™, Dolby Digital™,
• Dolby Pro Logic™,
• DTS Digital Surround™,
• MPEG-2™ (in selected countries only),
• THX Surround EX™ (option – also allows DTS-ES 6.1 Matrix™),
• DTS-ES 6.1 Discrete™, DTS-Neo: 6™, Dolby Pro Logic II™ (options)
• Processing formats TAG McLaren Surround 7™, THX™ Cinema
• Digital signal processor Analog Devices 21065L SHARC™ 66 MHz 32-bit floating point DSP
• Digital input frequencies 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
• Digital input format Coaxial SPDIF Optical EIAJ RC-5720
• Digital input connector Coaxial phono socket Optical rectangular TOSLINK
• Digital input impedance Coaxial 75 Ω ±1 %
• Digital input level Coaxial >200 mV pp Optical –27 to –14.5 dBm
• Digital output format Coaxial SPDIF
• Digital output connector phono socket
• Digital output impedance 75 Ω ±5 %
• Digital output level 500 mV pp ±10 % (75 Ω load)
• Analog input connector phono socket
• Analog input impedance 10 kΩ ±1 %
• Analog input level User-configurable between 0.1 V and 3.0 V rms
• Analog input frequency response (±0.5 dB) 2 Hz – 20 kHz
• Analog input total harmonic distortion + noise < 0.0035 %
• Analog input channel separation > 95 dB at 1 kHz
• Analog input crosstalk rejection > 90 dB at 1 kHz
• Analog to digital converter 20-bit / 96 kHz 64-times
• (analog inputs) oversampling multi-bit delta sigma ADC
• Tape output connector phono socket
• Tape output impedance 100 Ω
• Tape output gain 0 dB (i.e. the tape output level is the same as the analog input level)
• Analog output connector phono socket
• Analog output impedance 47 Ω nominal
• Maximum analog output level >3.5 V rms (9.0 V rms on subwoofer)
• Digital to analog 24-bit / 96 kHz 128-times
• converters oversampling multi-bit delta sigma DAC
• Analog output frequency response (±0.5 dB) 2 Hz – 20 kHz
• Analog output signal to noise ratio >104 dB (A-weighted)
• Analog output total harmonic distortion + noise (0 dB full scale) < 0.002 %
• Analog output channel balance < ±0.5 dB at 1 kHz
• Analog output channel separation > 100 dB at 1 kHz
• Analog output volume control steps of 0.5 dB
• Video bandwidth DC –4.2 MHz ± 0.25 dB
• Video input impedance 75 Ω ±1 %
• Video output impedance 75 Ω ±1 %
• Operating temperature range 10 – 35 °C
• Upgrades (optional) AC-3 laserdisk decoding, THX Surround EX™, Automation, Digital Radio
• AC supply frequency 50 – 60 Hz
• AC supply voltage 90 – 100 V, 110 – 120 V or 220 – 240 V
• The voltage is marked on the rear of the unit
• Power consumption less than 30 W
• Dimensions (including feet, terminals and controls) W x H x D 445 x 75 x 338 mm
• Weight 9.8 kg
